Gatic Slotdrain FacadeSlot End Cap
00170
GS
A15
Load Class
FacadeSlot End Cap
- Product Attributes
- Volumetric Data
- Description
- Key Features
- NBS Source
| Product Type | End Cap |
|---|---|
| British Standard | BS EN 1433 |
| NBS Uniclass Reference | Pr_65_52_24_47 Linear slot drainage channels |
| NBS CAWS Reference | Q10/170 Linear slot drainage channel systems |
| Material | Galvanised Steel |
Brand: Gatic
Product Family: Slotdrain
Product Range: FacadeSlot
Metal Type: Galvanised Steel
Load Class: A15
Product Type: simple
Weight: 0.220462 kg kg
Width: 5 cm
Height: 15.7 cm
Description
Gatic FacadeSlot is a discreet surface drainage channel engineered for installation against building facades, walls, and architectural edges where subtle, unobtrusive drainage is essential. Designed for paved environments and light‑duty applications, FacadeSlot provides effective interception of surface water from vertical surfaces, door thresholds, and adjacent hard landscaping. Its slim profile allows it to follow straight or curved building perimeters, making it ideal for visually sensitive areas such as podiums, retail centres, courtyards, and residential landscapes. Manufactured from durable galvanised steel and available in widths of 50mm, 75mm, and 115mm, the system supports A15 load rating, delivering reliable performance for pedestrian‑only zones. FacadeSlot can incorporate rainwater downpipes directly through a simple inlet box, eliminating the need for separate roof drainage networks and improving system efficiency. With its clean lines, adaptable geometry, and high‑quality construction, Gatic FacadeSlot offers a refined, architecturally sympathetic drainage solution for modern urban environments.
Features and benefits:
- Neat, unobtrusive and aesthetically discreet profile ideal for paved public and commercial areas.
- Designed specifically for use with paving units laid directly against the channel edge, ensuring a seamless surface finish.
- Throat‑spacer perforations allow subsurface water beneath paving to percolate into the channel body, enhancing drainage performance.
- Strong and durable construction with galvanized steel for longevity and reliability in paved environments.
- Watertight, rigid steel‑lined structure providing efficient and protected water conveyance.
- High drainage capacity with maximum intake and stepped fall for self‑cleansing flow.
- Continuous interception reduces surface wash‑over, improving performance in urban paved areas.
- Available load classification A15 to C250, suitable for pedestrian zones with occasional service vehicle traffic. [bg-graspointner.com], [alumascwms.co.uk]
- Fast, easy installation with lightweight, impact‑resistant galvanized steel channel units.
- Wide range of channel widths (100–600 mm) and accessories, offering strong design flexibility.
Details coming soon.
Request a Consultation
Related Products
UAT00342

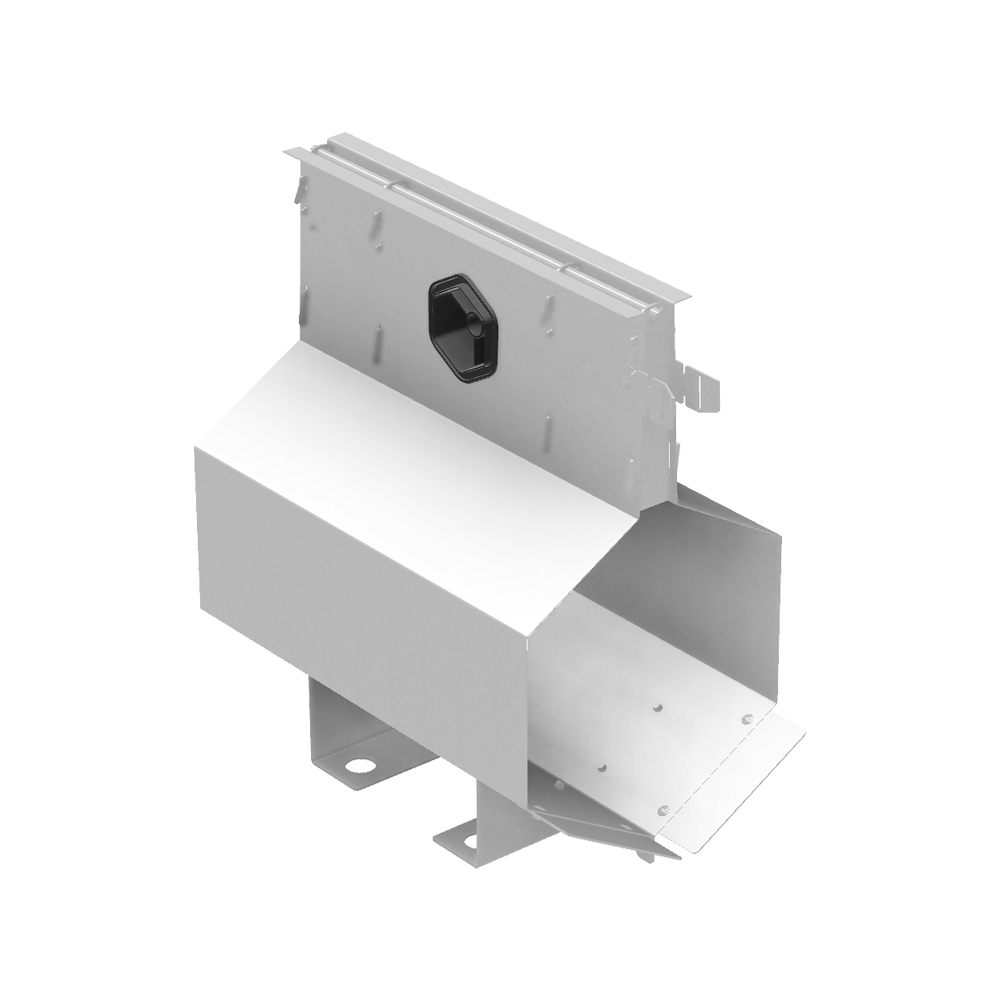

Gatic Slotdrain UltraSlot Treadsafe 150mm 0.5m Length
