Ductile Iron Covers & Frames
Gatic sets the standard for access covers and frames, offering a combination of matchless quality with tried and tested solutions. The secret lies in the closely machined horizontal and vertical seating faces of the cover and frame components, which, when assembled into a complete unit, provide a cover and frame that is non-rocking, gas- and airtight. Available in solid top or recessed design as a single, duct or multispan configuration, Gatic Ductile Iron Covers & Frames provide durable, high-performance solutions for demanding environments. Rated up to F900, they suit highways, airports and industrial sites, and are configurable for various underground services. Solid tops offer slip resistant strength without infill, while recessed covers enable seamless aesthetic integration with surrounding surfaces.
- Key Features
- Applications
- Description
- NBS Source
- Machine seated to 0.25 mm tolerance
- Non-rocking
- Resistant to jet blast
- Vandal resistant
- Available in recessed and solid top
- Levelling bolts to aid levelling unit during installation
- Gas-, air- and watertight
- Ductile iron components coated with black bitumen solution for temporary protection during transit
- Steelwork galvanized to BS EN ISO 1462
- Ductile iron components to BS EN 1563
- Certified to BSI ISO 9001 and BSI ISO 14001
- Airports
- Ports/docks
- Utilities: gas/electricity
- Water – Sewerage treatment works / water treatment works/pumping stations
- Power stations/sub-stations
- Commercial and industrial applications
- Highways
- Tunnels
- Manhole/Pump/Valve/Transformer chambers
- Pipe and cable service trenches
- Cable draw pits
- Lighting pits
- Fuel and fire hydrant pits
- Machinery/plant access chambers
- Combined sewer/Overflow chambers
Ductile Iron Access Covers, including both Solid Top and Recessed designs, are high-performance solutions engineered for durability, stability, and long-term reliability in demanding environments. Manufactured from robust ductile iron, they meet stringent industry standards and load classifications up to F900, making them suitable for heavy-duty applications such as highways, airports, ports, and industrial sites.
These covers are available in a variety of configurations, including single covers, duct covers, and multispan, allowing access to a wide range of underground services, from small chambers to large, continuous utility trenches.
Solid Top Covers feature a raised lozenge pattern surface that provides a tough, slip-resistant finish without the need for concrete infill, resulting in a lighter yet exceptionally strong solution.
Recessed Covers are designed to be infilled with surrounding surface materials, enabling them to blend seamlessly into paved or landscaped environments for a clean, architectural appearance.
Both types incorporate precision machined horizontal and vertical seating faces, ensuring a non-rocking fit and forming a gas-, air- and watertight seal. This prevents movement under traffic loads and protects underground
infrastructure from water and debris ingress.
Suitable for applications such as manholes, utility ducts, service trenches, and access chambers, these covers deliver high structural integrity, vandal resistance, ease of access, and visual consistency, making them ideal for commercial, infrastructure, and public realm projects.
Case Studies
Alicante Port – Smooth sailing for Gatic Slotdrain as UltraSlot system is installed at Alicante Port
“The biggest challenge we faced was ensuring the system could withstand the consistent, heavy traffic that will always be moving throughout the port,” continues Luis. “However, thanks to its capacity…
Learn more
Amazon Distribution, Kent – Gatic Slotdrain delivers prime service at Amazon distribution centre in Kent
Amazon has invested heavily in its UK operations in recent years and more recently with the accelerated growth of online shopping, significantly increasing its number of warehouses across the UK. One such distribution centre is in Kingsnorth, Kent. This 34,000 square metre warehouse opened in 2018 and has benefitted from the installation of a Gatic Slotdrain CastSlot system.
Learn more
Amazon HQ, Seattle USA – Gatic PaveSlot specified for Amazon HQ
Gatic Slotdrain PaveSlot was specified to meet these demands. The system is designed to drain external hard surface areas where a neat, unobtrusive and aesthetic appearance is required. Rather than…
Learn more

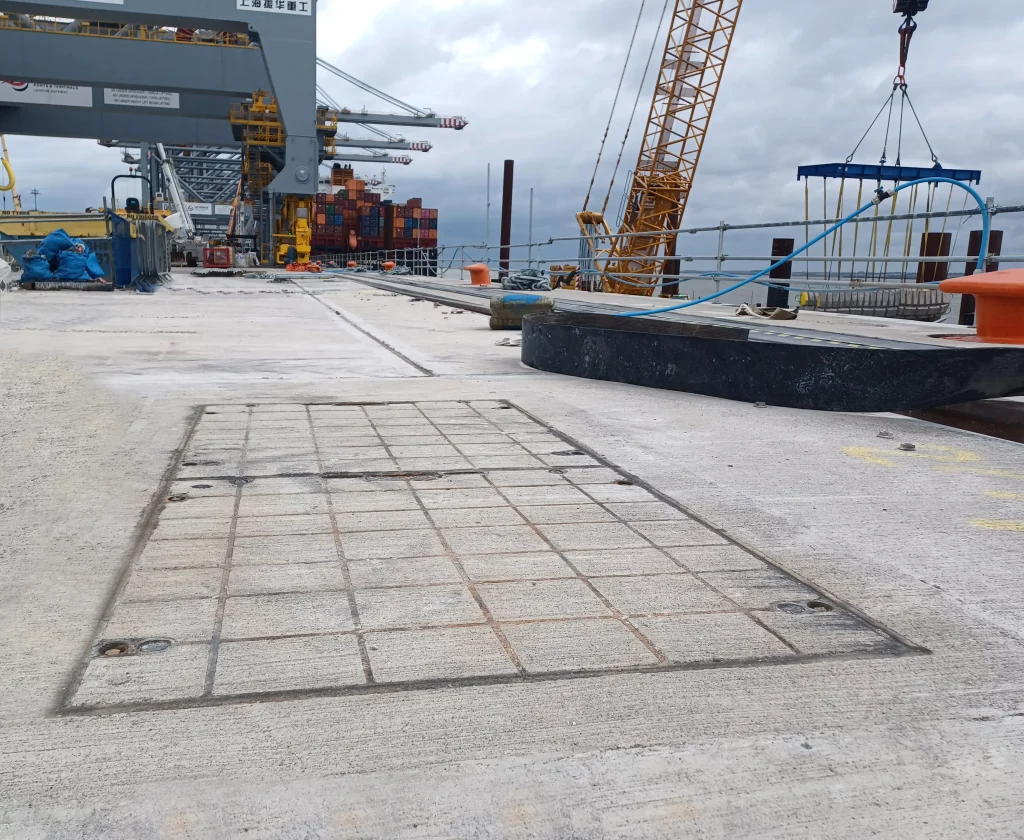

Gatic continues to excel for DP World at London Gateway Berth 4
Gatic Drainage systems have been specified for DP World’s Berth 4 at the London Gateway logistics hub, continuing a trusted relationship established over previous berth developments at the site.
Learn more

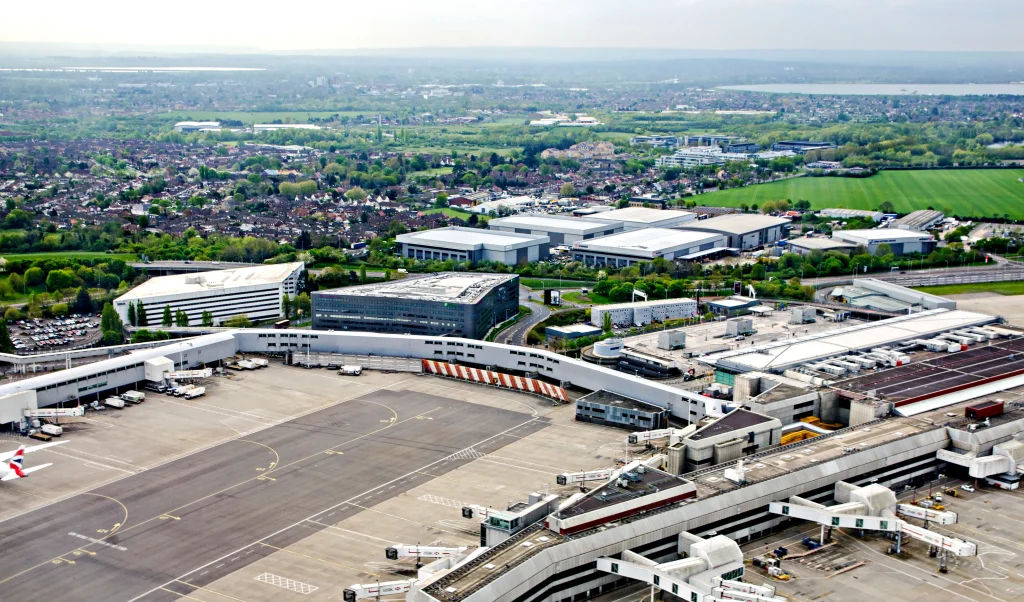

Gatic Access Covers from Alumasc specified for Heathrow Airport Resurfacing Works
Gatic Access Covers from Alumasc Water Management Solutions (AWMS) have been supplied as part of major resurfacing works at London’s Heathrow Airport.
Learn more

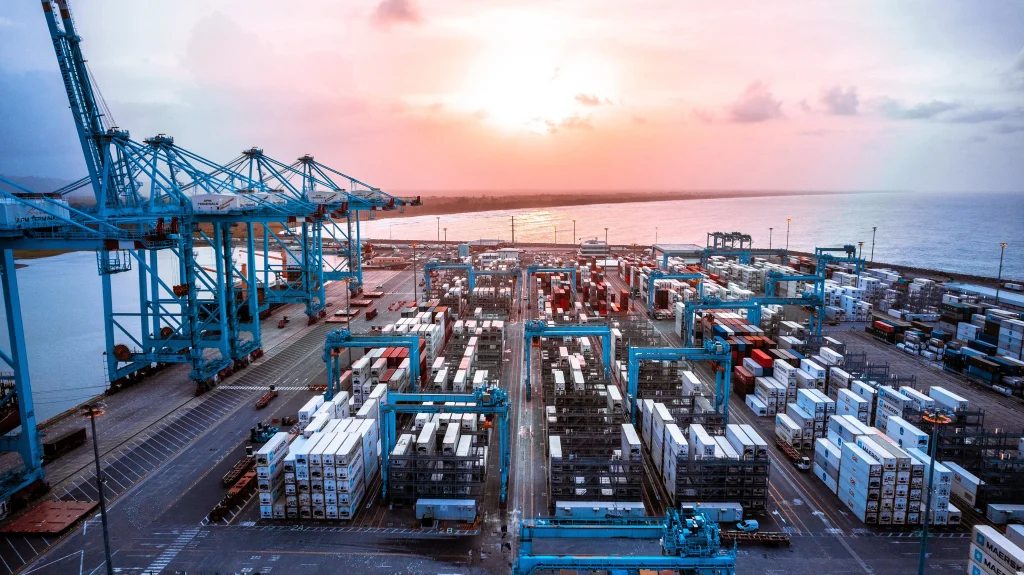

GATIC drainage solutions specified for ground-breaking Costa Rican port
